10-150PPI Open Cell Aluminum Foam Panel Can Be Customized

Introduction

1. Aluminium foam is an unusual substance created with Aluminium as the foundation metal. In most cases, it is created by injecting a gas or introducing a dispersant into molten metal. It is a structure of interconnected Aluminium fibers that form cells with open and closed pores. Open-celled Aluminium foams (porous Aluminium) and closed-cell Aluminium foams are the two forms of foams. It contains solid pores and has fully programmable features, allowing its performance qualities to be modified for various applications. Because of the product's structure, it is also known as open-cell Aluminium foam. It is widely used in applications that benefit from its lightweight structure, huge surface area, and nature-like morphology of the rigid cellular structure.

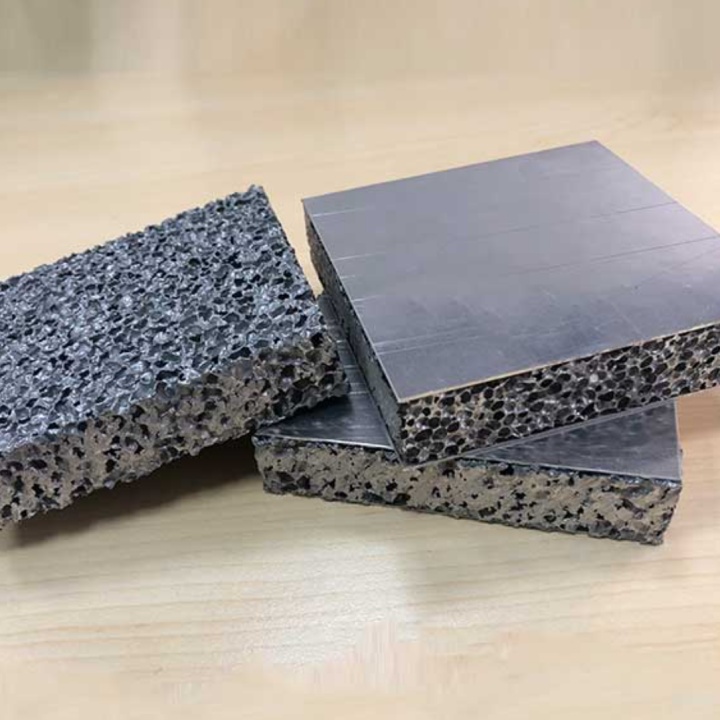

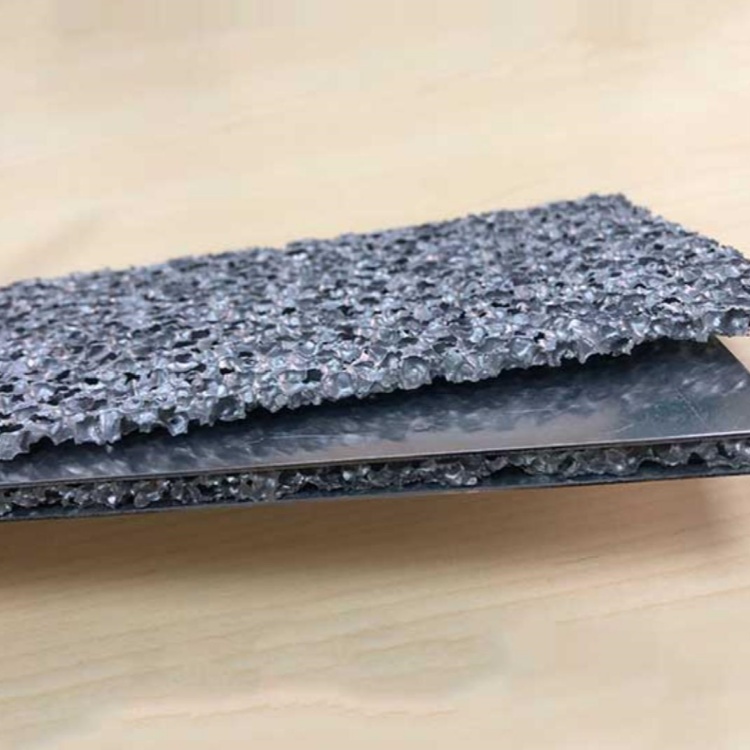

2. The foam can be produced using a variety of ways. It can be made by directly foaming Aluminium alloy or advanced metal powder processing. Our technology makes complex foam components and 3D-shaped sandwich panels comprised of foam cores and Aluminium face sheets very simple. Components include complex foam shapes and 3-dimensional panels of foam cores and Aluminium face sheets. These potential applications are investigated in various fields, including lightweight structures, crash energy absorption, and heat or sound insulation.

Specifications

Type	Open-cell
Purity	> 99%
Form	Sheet or Roll, depending on size & thickness
Cell Size (PPI)	as per request
Thickness	Standard: 4-10mm  can be customized as request
Size & Shape	can be made in different shape as per request
Porosity	55-60%
Open Cell Rate	55-60%
Volume Density	0.25-0.75g/cm3, as per request
Surface Density	200-2500 g/m ^2, as per request
Noise reduction coefficient NRC	>0.75
Fire-proof level	A1
Energy absorption	8J/m3-30J/M3
Compressive strength	3Mpa-17Mpa
Flexural strength	3Mpa-15Mpa



Reference dimensions

2mm*200mm*300mm	3mm*200mm*300mm	4mm*200mm*300mm
5mm*200mm*300mm	6mm*200mm*300mm	7mm*200mm*300mm
8mm*200mm*300mm	9 to 10mm*200mm*300mm	The size can be customized

To customize various metal foams, please click the picture below for details：
