99.9% Purity Porous Open Cell Aluminum Foam With Low Price

  • Brand:

    ZOPIN
  • Item NO.:

    ZP-AF03
  • Payment:

    L/C, D/A, D/P, T/T, Western Union, PayPal, credit card, Alipay, etc
  • Lead Time:

    In stock
  • WhatsApp:

    +86 18832681205
  • Wechat:

    18832681205
  • Email:

    Daisy@foam-material.com
  • Product Detail

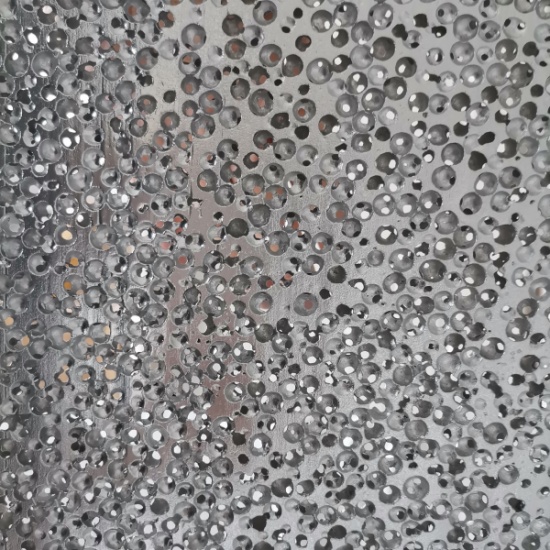

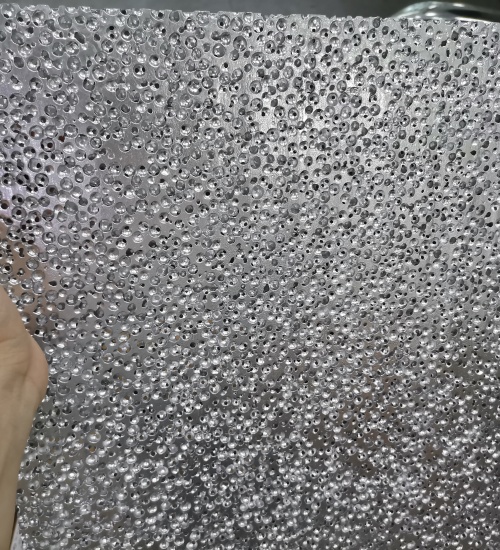

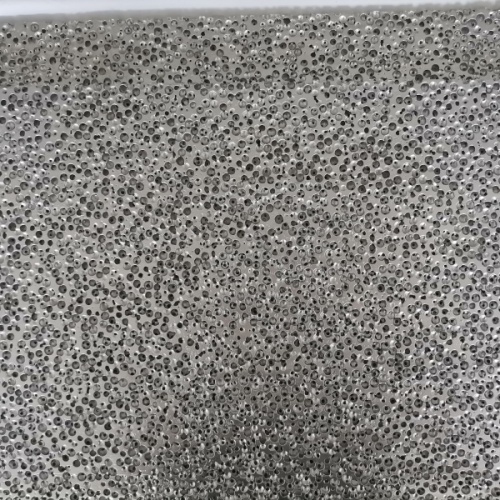

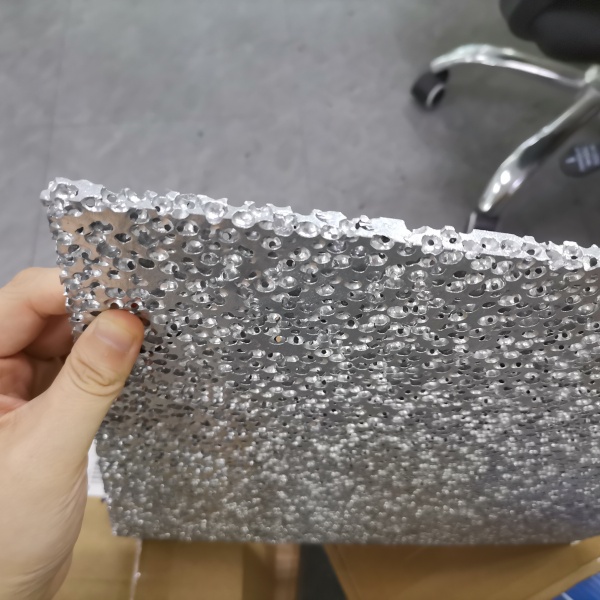

99.9% Purity Porous Open Cell Aluminum Foam With Low Price



Introduction

1. Aluminium foam is an unusual substance created with Aluminium as the foundation metal. In most cases, it is created by injecting a gas or introducing a dispersant into molten metal. It is a structure of interconnected Aluminium fibers that form cells with open and closed pores. Open-celled Aluminium foams (porous Aluminium) and closed-cell Aluminium foams are the two forms of foams. It contains solid pores and has fully programmable features, allowing its performance qualities to be modified for various applications. Because of the product's structure, it is also known as open-cell Aluminium foam. It is widely used in applications that benefit from its lightweight structure, huge surface area, and nature-like morphology of the rigid cellular structure.

2. The foam can be produced using a variety of ways. It can be made by directly foaming Aluminium alloy or advanced metal powder processing. Our technology makes complex foam components and 3D-shaped sandwich panels comprised of foam cores and Aluminium face sheets very simple. Components include complex foam shapes and 3-dimensional panels of foam cores and Aluminium face sheets. These potential applications are investigated in various fields, including lightweight structures, crash energy absorption, and heat or sound insulation.


Specifications

Type

Open-cell

Purity

> 99%

Form

Sheet or Roll, depending on size & thickness

Cell Size (PPI)

as per request

Thickness

Standard: 4-10mm  can be customized as request

Size & Shape

can be made in different shape as per request

Porosity

55-60%

Open Cell Rate

55-60%

Volume Density

0.25-0.75g/cm3, as per request

Surface Density

200-2500 g/m ^2, as per request

Noise reduction coefficient NRC

>0.75

Fire-proof level

A1

Energy absorption

8J/m3-30J/M3

Compressive strength

3Mpa-17Mpa

Flexural strength

3Mpa-15Mpa



Reference dimensions

2mm*200mm*300mm

3mm*200mm*300mm

4mm*200mm*300mm

5mm*200mm*300mm

6mm*200mm*300mm

7mm*200mm*300mm

8mm*200mm*300mm

9 to 10mm*200mm*300mm

The size can be customized
