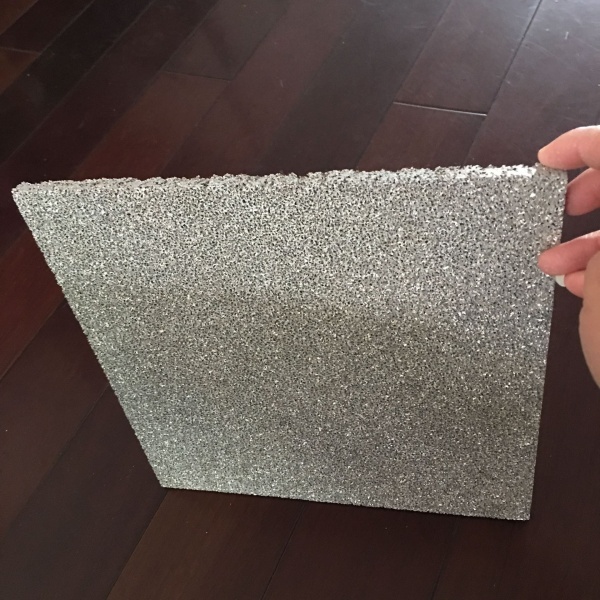

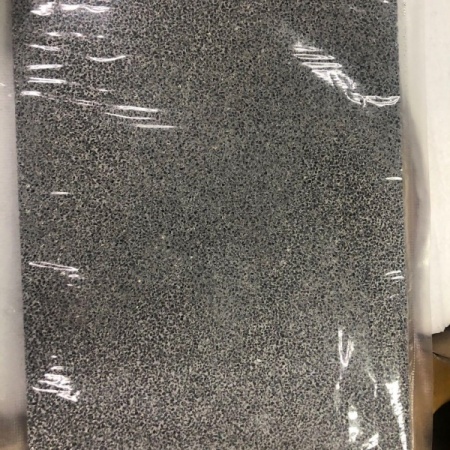

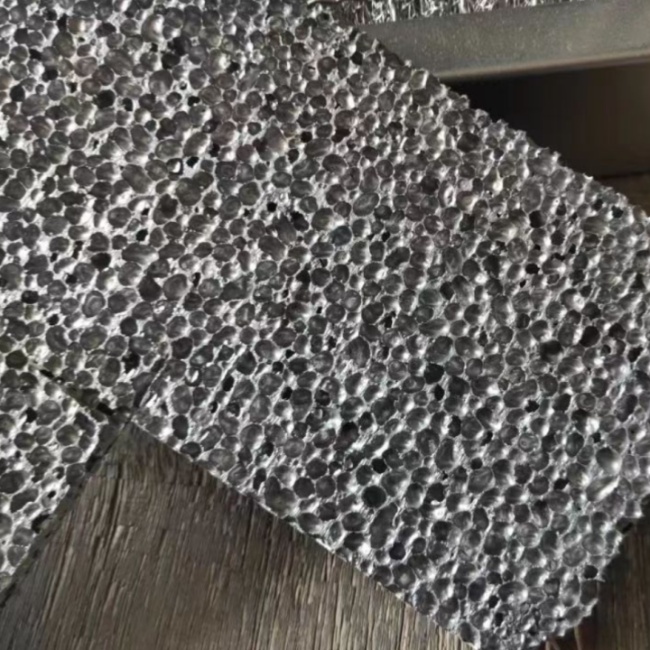

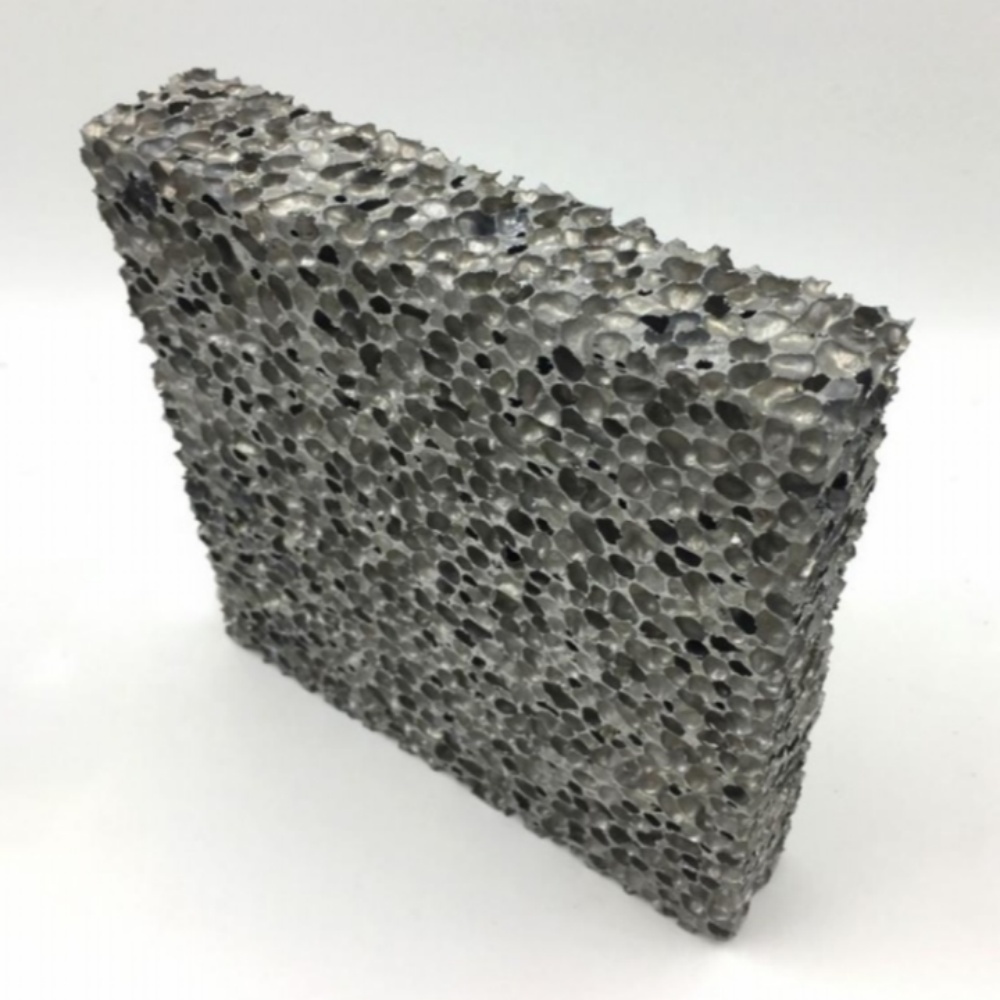

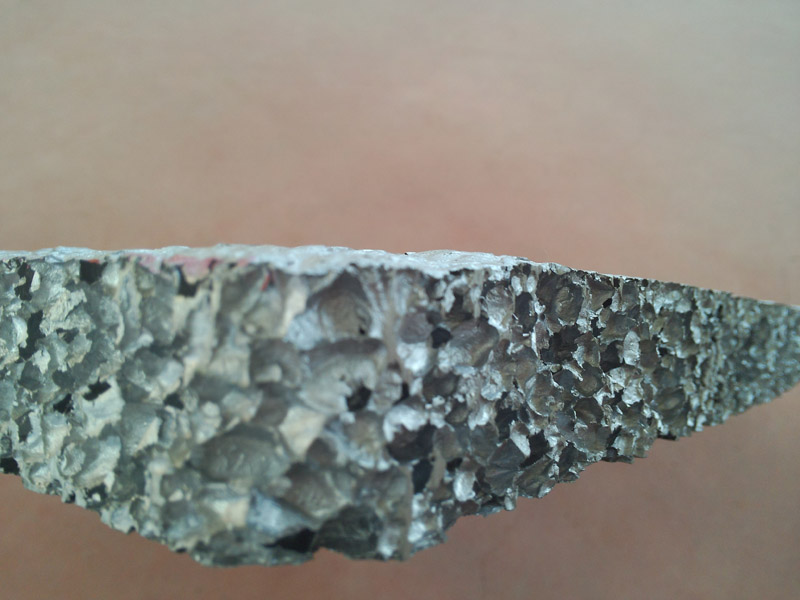

Semi-open Cell Aluminium Metal Foam Panel Sheet

Introduction

Aluminium foam is a sandwich panel product which is made of two metallic dense face sheets and a metal foam core made of an aluminium alloy. AF is an engineering structural material owing to its stiffness-to-mass ratio and energy absorption capacity ideal for application such as the shell of a high-speed train.

Specifications

Type	Open-cell
Purity	> 99%
Form	Sheet or Roll, depending on size & thickness
Cell Size (PPI)	as per request
Thickness	Standard: 4-10mm  can be customized as request
Size & Shape	can be made in different shape as per request
Porosity	55-60%
Open Cell Rate	55-60%
Volume Density	0.25-0.75g/cm3, as per request
Surface Density	200-2500 g/m ^2, as per request
Noise reduction coefficient NRC	>0.75
Fire-proof level	A1
Energy absorption	8J/m3-30J/M3
Compressive strength	3Mpa-17Mpa
Flexural strength	3Mpa-15Mpa



Reference dimensions

2mm*200mm*300mm	3mm*200mm*300mm	4mm*200mm*300mm
5mm*200mm*300mm	6mm*200mm*300mm	7mm*200mm*300mm
8mm*200mm*300mm	9 to 10mm*200mm*300mm	The size can be customized

To customize various metal foams, please click the picture below for details：
