Daisy@foam-material.comStainless Steel Woven Wire Mesh for Filtration and Grading Applications
Overview

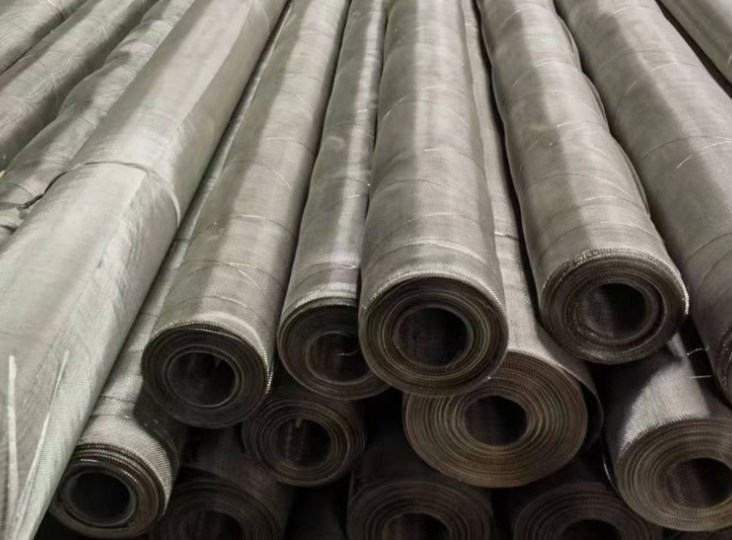

Stainless steel woven wire mesh is a versatile and widely used material known for its durability, strength, and corrosion resistance. It is created by weaving stainless steel wires together to form a mesh pattern. This mesh is available in various weave styles, each offering unique characteristics suitable for different applications.
Specificarion:
Material | 201, 304, 316, 316L, 310, 310S, 2205, 2507, etc., can be customized according to customer requirements. |
Width | 0.914m, 1m, 1.22m, 1.5m, 1.8m, 2m, 2.5m, 3m, etc. |
Length | 30m/roll, can be extended based on customer requirements. |
Mesh Count | 1-2500 |
Wire Diameter Range | 0.0015mm-8.00mm |
Aperture Size Range | 0.0385mm-2.54mm |
Weaving | Plain weave and twill weave |
Performance | Resistant to acid, breakage, high temperature, strong tensile strength, and wear resistance. |
Mesh Count | Description | Nominal | Wire Diameter | Open Area (%) | Weight kg/m² |
4 | Heavy | 5.45 | 0.9mm (20 SWG) | 74 | 1.61 |
8 | Varroa | 2.47 | 0.71mm (22 SWG) | 60 | 2.00 |
10 | Coarse | 1.98 | 0.56mm (24 SWG) | 61 | 1.51 |
20 | Medium | 0.915 | 355µm (28 SWG) | 52 | 1.25 |
30 | Insect Screen | 0.567 | 280µm (32 SWG) | 45 | 1.17 |
40 | Vivarium Vent | 0.411 | 224µm (34 SWG) | 42 | 1.00 |
60 | Papermaking | 0.263 | 160µm (37 SWG) | 39 | 0.76 |
80 | Fine | 0.178 | 140µm (39 SWG) | 31 | 0.78 |
120 | Filter | 0.122 | 90µm (43 SWG) | 33 | 0.48 |
200 | Super Fine | 0.075 | 53µm (47 SWG) | 34 | 0.28 |
400 | Metal Silk | 0.035 | 28µm (49 SWG) | 31 | 0.16 |
Applications:
Used for screening and filtering under acidic and alkaline conditions, in the petroleum industry as mud nets, in the chemical and chemical fiber industries as screening and filtration nets, and in the electroplating industry.
Applied in mining, petroleum, chemical, food, pharmaceutical, and mechanical manufacturing industries.
Utilized for screening and filtering under acidic and alkaline conditions, in the petroleum industry as mud nets, in the chemical and chemical fiber industries as screening, and in the electroplating industry as acid washing nets.
