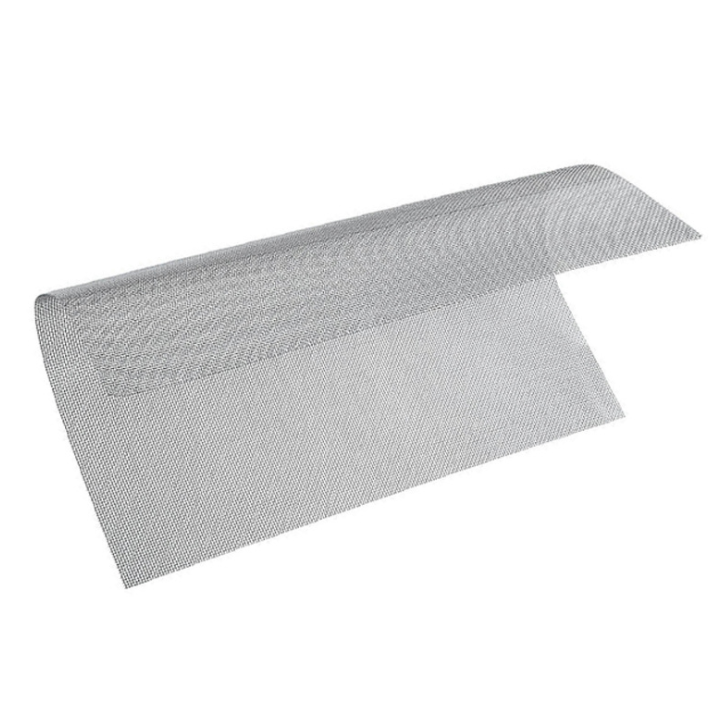

Daisy@foam-material.com60 Mesh Stainless Steel Sieve Screen Wire Mesh
Overview
Plain weave can be woven up to 400 mesh.
Twill weave can be woven from 400 to 635mesh.
Dutch weave can be woven up to 3500mesh
Specificarion:
Material | 201, 304, 316, 316L, 310, 310S, 2205, 2507, etc., can be customized according to customer requirements. |
Width | 0.914m, 1m, 1.22m, 1.5m, 1.8m, 2m, 2.5m, 3m, etc. |
Length | 30m/roll, can be extended based on customer requirements. |
Mesh Count | 1-2500 |
Wire Diameter Range | 0.0015mm-8.00mm |
Aperture Size Range | 0.0385mm-2.54mm |
Weaving | Plain weave and twill weave |
Performance | Resistant to acid, breakage, high temperature, strong tensile strength, and wear resistance. |
Mesh Count | Description | Nominal | Wire Diameter | Open Area (%) | Weight kg/m² |
4 | Heavy | 5.45 | 0.9mm (20 SWG) | 74 | 1.61 |
8 | Varroa | 2.47 | 0.71mm (22 SWG) | 60 | 2.00 |
10 | Coarse | 1.98 | 0.56mm (24 SWG) | 61 | 1.51 |
20 | Medium | 0.915 | 355µm (28 SWG) | 52 | 1.25 |
30 | Insect Screen | 0.567 | 280µm (32 SWG) | 45 | 1.17 |
40 | Vivarium Vent | 0.411 | 224µm (34 SWG) | 42 | 1.00 |
60 | Papermaking | 0.263 | 160µm (37 SWG) | 39 | 0.76 |
80 | Fine | 0.178 | 140µm (39 SWG) | 31 | 0.78 |
120 | Filter | 0.122 | 90µm (43 SWG) | 33 | 0.48 |
200 | Super Fine | 0.075 | 53µm (47 SWG) | 34 | 0.28 |
400 | Metal Silk | 0.035 | 28µm (49 SWG) | 31 | 0.16 |
