Daisy@foam-material.comProfile Mti Nickel Metal Foams Suppliers Available
Introduction
· Nickel foam has excellent thermal conductivity, thermal heat can be widely used in electrical / electrical and electronic components.
· Nickel foam because of its excellent electrical conductivity, and its application in the electrode material nickel-zinc batteries and electric double layer capacitor is also the industry ‘s attention is being.
· Due to the structure and properties of nickel foam harmless to human basic characteristics of nickel foam is an excellent medicine and water purification filter material filter material.
Specifications
Type | Open cell |
Purity | > 99% |
Form | Sheet or Roll, depending on size & thickness |

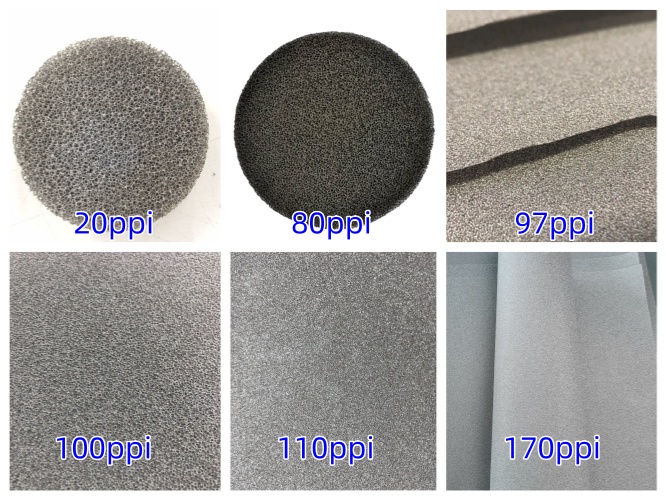

Cell Size (PPI) | 10-150PPI, as per request |
Thickness | Standard: 1-30mm Extra thin (<1mm) / Extra thick (>30mm) can be customized as request |
Size & Shape | Standard: 500*500mm/ 200*300mm; can be made in different shape as per request |
Porosity | 95%-98% |
Open Cell Rate | ≥98 % |
Volume Density | >0.1g/cm3, as per request |
Surface Density | 200-2500 g/m ^2, as per request |
Thermal Conductivity (Theoretical) | >3W/M.K |
Mechanical Strength (Theoretical) | ≥2~7MPa |
Tensile Strength (Theoretical) | 8~50MPa |
Temperature Resistance (Theoretical) | ≥500℃ |
Dimension (Thickness* Length*Width)
0.08mm*300mm*200mm | 0.2mm*200mm*300mm | 0.3mm*200mm*300mm |
0.5mm*200mm*300mm | 0.7mm*200mm*300mm | 0.9mm*200mm*300mm |
1.0mm*200mm*300mm | 1.3mm*200mm*300mm | 1.5mm*200mm*300mm |
1.7mm*200mm*300mm | 2.0mm*200mm*300mm | 5mm*200mm*300mm |
10mm*200mm*300mm | 30mm*200mm*300mm | The size can be customized |
To customize various metal foams, please click the picture below for details：
| | | |
|
|
|
|
