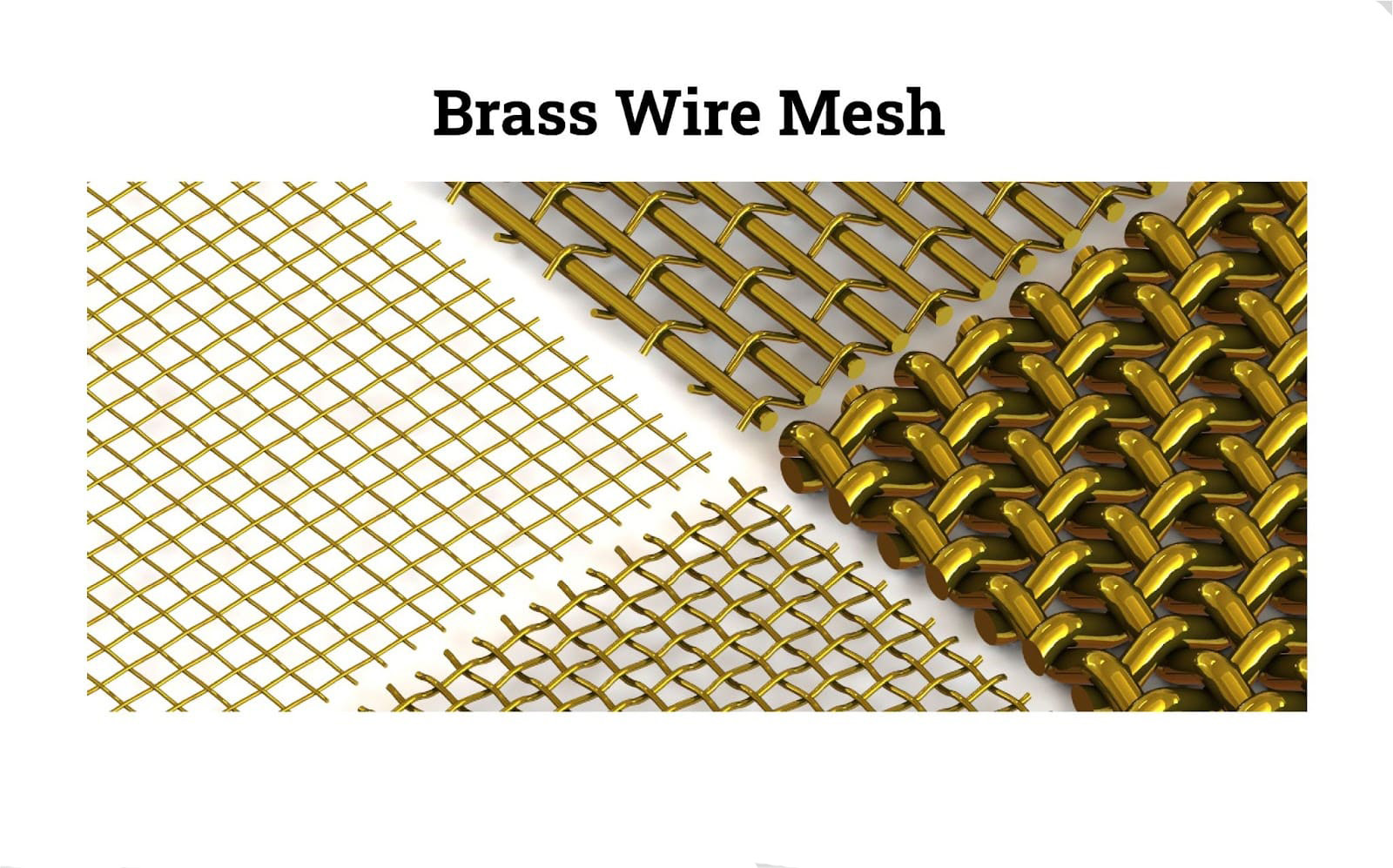

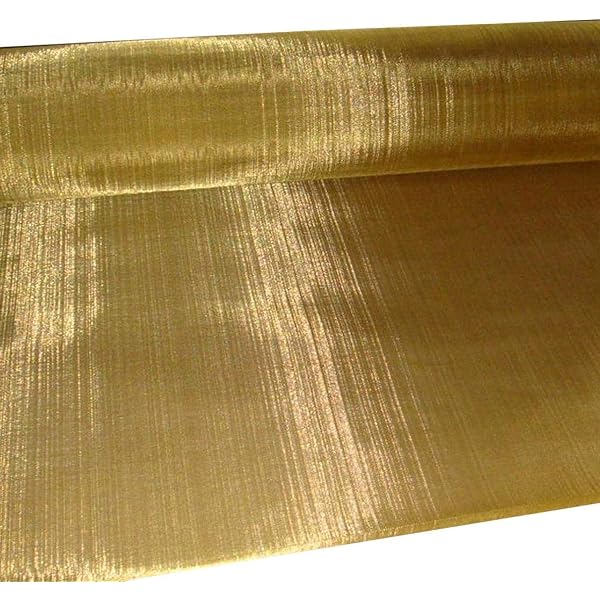

Daisy@foam-material.comBrass Woven Mesh with Excellent Conductivity for Electrical Equipment Applications
Introduction
Brass is a copper and zinc alloy. In the production of wire mesh, it is a soft, malleable metal known as 270 yellow brass or 260 high brass. 270 yellow brass is 65% copper and 35% zinc, while the chemical make-up of 260 high brass is 70% copper and 30% zinc. Brass wire mesh has great tensile strength, excellent abrasion resistance, and is toughened due to the higher zinc content. Industrial grade brass wire mesh is a common decorative artistic element in architectural projects because of its yellow hue.
Specification
Material | Brass wire |
Craft | Plain weave, Twill weave, Embossing |
Mesh count | 1 - 500 mesh (Due to limited drawing technology, the highest mesh count for brass and purple copper mesh is currently up to 200 mesh, while phosphorus copper mesh can be produced from 1-500 mesh) |
Wire diameter | 0.03-5mm |
Aperture | 0.029-50mm |
Width | 0.914, 1, 1.2, 1.3, 1.5, 1.8, 2, 2.5 (Can be processed into narrower widths down to 3mm upon customer request) |
Length | Generally 30m for stock, but production can be extended based on customer requirements, up to 180m |
Applications | Brass mesh is typically utilized for conductivity, screening, current collection, and air particle filtration. |
• Specifications:
To customize various metal meshes, please click the picture below for details：
| | | |
| |
|
|
