Daisy@foam-material.comUltrathin Nickel Iron Metal Foam Production Availble To Buy
Introduction

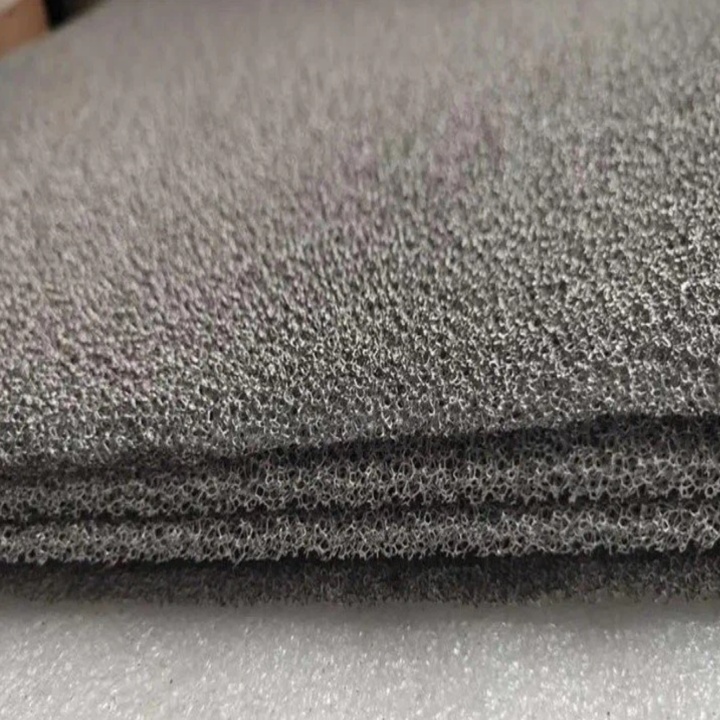

Iron-nickel Foam, also known as Fe-Ni foam, is a porous material made from a combination of iron (Fe) and nickel (Ni) metals. It is characterized by its open-cell, sponge-like structure, which consists of interconnected metal struts and void spaces. This foam material is known for its unique properties and finds applications in various industries. It features ultra-light quality, good sound absorption, electron wave shielding, processability, fire resistance as well and strong thermal conductivity.
Specifications
Type | Open cell |
Purity | > 97% |
Form | Sheet or Roll, depending on size & thickness |
Cell Size (PPI) | 5-150PPI, as per request |
Thickness | Standard: 1-30mm Extra thin (<1mm) / Extra thick (>30mm) can be customized as request |
Size & Shape | can be made in different shape as per request |
Porosity | 95%-98% |
Open Cell Rate | ≥98% |
Volume Density | 0.1-0.8g/cm3, as per request |
Dimension (Thickness* Length*Width)
0.5mm*200mm*300mm | 1mm*200mm*300mm | 2mm*200mm*300mm |
3mm*200mm*300mm | 4mm*200mm*300mm | 5mm*200mm*300mm |
6mm*200mm*300mm | 7mm*200mm*300mm | 8mm*200mm*300mm |
9mm*200mm*300mm | 10mm*20mm*300mm | The size can be customized |
