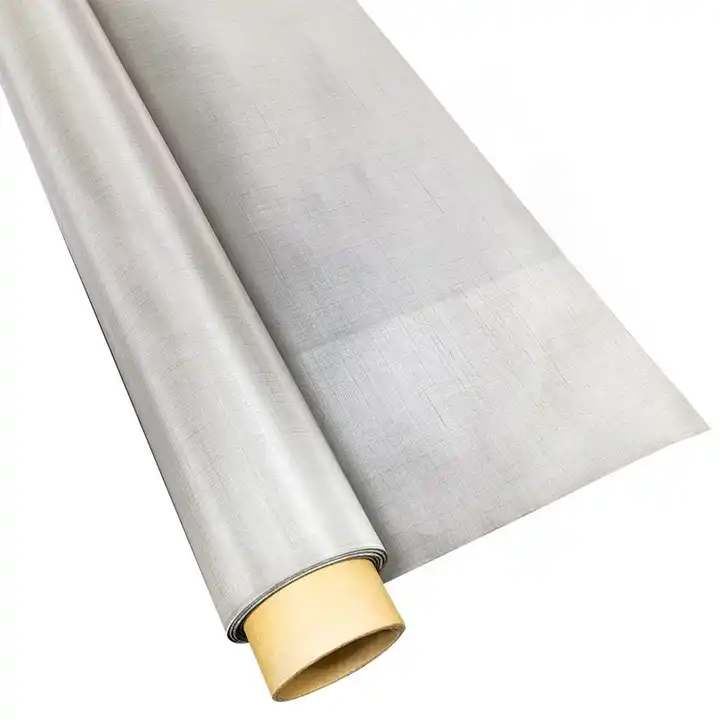

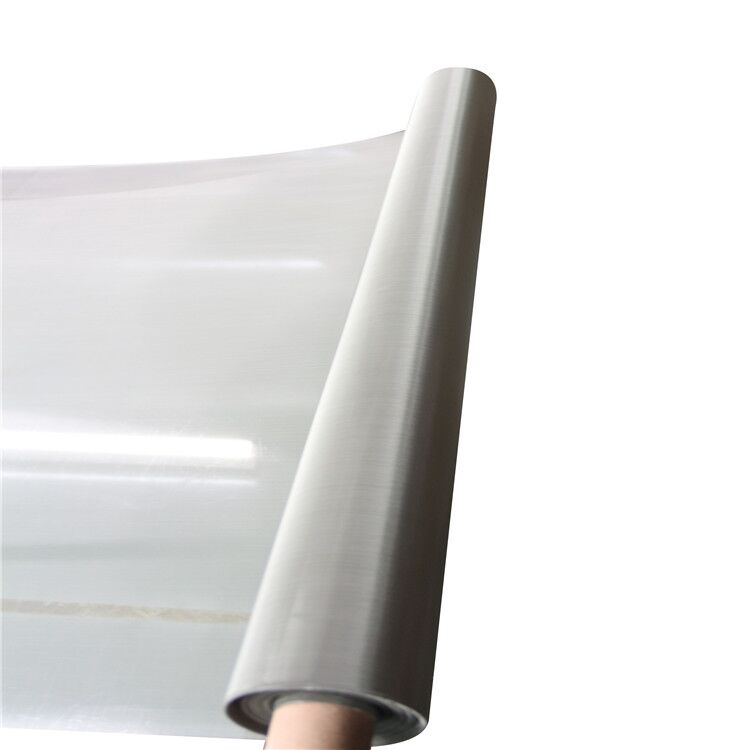

Daisy@foam-material.comUltra-Conductive N6 Pure Nickel Wire Mesh
Introduction
Metal nickel wire mesh, known for its corrosion resistance and durability against acids and alkalis, finds extensive application in chemical filtration processes. Its versatile nature makes it an ideal choice for laboratory shielding and particle sieving applications.
Speicifcation
Nickel Wire Woven Mesh Specification List | ||
10 | 0.5mm | 2.04mm |
16 | 0.3mm | 1.287mm |
20 | 0.3mm | 0.97mm |
30 | 0.2mm | 0.64mm |
40 | 0.15mm | 0.485mm |
50 | 0.15mm | 0.358mm |
60 | 0.12mm | 0.28mm |
60 | 0.25mm | 0.17mm |
80 | 0.1 mm | 0.2mm |
80 | 0.18mm | 0.137 mm |
100 | 0.1 mm | 0.154mm |
100 | 0.15mm | 0.104mm |
120 | 0.08mm | 0.11 mm |
150 | 0.06mm | 0.1 mm |
180 | 0.06mm | 0.08mm |
200 | 0.05mm | 0.07mm |
250 | 0.04mm | 0.06mm |
300 | 0.032mm | 0.05mm |
350 | 0.03mm | 0.04mm |
400 | 0.027mm | 0.036mm |
Dimensions
To customize various metal meshes, please click the picture below for details:
