0.6~6mm Thickness Titanium Foam Suppliers With Low Price

Introduction

With its unique properties, titanium foam can be widely used in the pharmaceutical industry, water treatment industry, food industry, bioengineering, chemical industry, petrochemical, metallurgical industry, and gas purification. It is a new material with broad development prospects.

1. In the infusion of the pharmaceutical industry, small injections, eye drops, decarbonization filtration in the concentration of oral liquids, and security filtration before terminal filtration in the lean distribution.

2. Removal of impurities in the production process of raw materials, decarbonization filtration, and fine filtration of materials.

3. Security filtration of ultrafiltration, RO, EDI systems in the water treatment industry, filtration after ozone sterilization, and ozone aeration.

4. Clarification and filtration of beverages, white sprinkles, beer, vegetable oil, mineral water, soy sauce, and vinegar in food and beverage.

5. Decarbonization filtration and precision filtration of liquid products, liquid raw materials and pharmaceutical intermediates in the chemical industry, ultrafine fine bodies, catalyst recovery, precision filtration after resin adsorption, system heat transfer oil, material removal, and impurity filtration, catalytic gas Purification and so on.

6. Oilfield backflow water filtration, security filtration before reverse osmosis in the desalination field.

7. High-temperature decarbonization and de-whitening filtration in the dye industry.

8. Filtration of steam, compressed air

Specification

Filtration accuracy	0.45um-100um
Porosity	28-50%
Transmittance rate	0.02-20M3cm/m2h.mmH2O
Compressive strength	0.5-1.5Mpa
Temperature resistance	280 ° C (wet state)
Maximum working pressure range	0.6Mpa
Precision	0.22 µm 0.45 µm 1 µm 3 µm 5 µm 10 µm 20 µm 30µm  50 µm 80 µm 100 µm

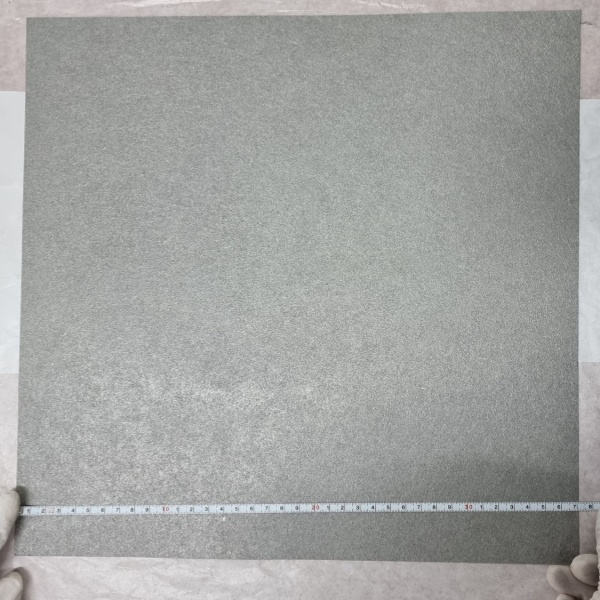

Reference dimensions

0.7mm*200mm*300mm	0.8mm*200mm*300mm	0.9mm*200mm*300mm
1.0mm*200mm*300mm	1.1mm*200mm*300mm	1.2mm*200mm*300mm
1.3mm*200mm*300mm	1.4mm*200mm*300mm	1.5mm*200mm*300mm
1.6mm*200mm*300mm	1.7mm*20mm*300mm	1.8mm*200mm*300mm
1.9mm*200mm*300mm	2 to 3mm*200mm*300mm	The size can be customized

To customize various metal foams, please click the picture below for details：
