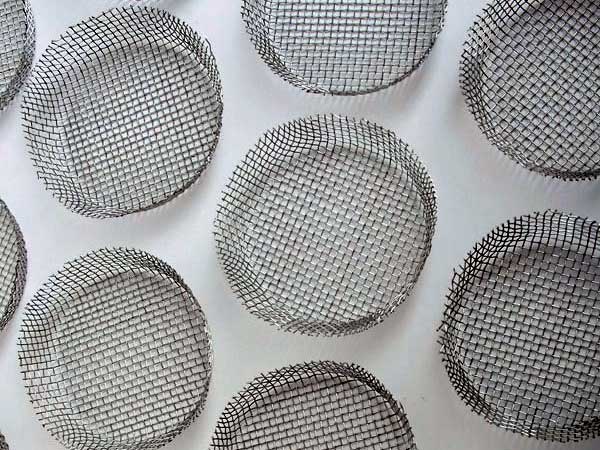

Daisy@foam-material.comStainless Steel Wire Mesh Filter for Filtration Applications
Overview:
Stainless steel filter mesh is suitable for various filtration applications, offering excellent corrosion resistance and high-temperature performance. Its precise mesh design effectively filters impurities, ensuring fluid purity. The filter mesh is structurally robust and durable, allowing for long-term stable operation.
Specifications:
| mesh | Wire Dia.(um) | Micron retention(um) | Porosity theor (%) | Weight (kg/) | Cloth thickness (mm) | ||
| Warp | weft | Nominal | absolute | ||||
| 720×140-150 | 35 | 110 | 15 | 16-20 | 52 | 0.65 - 0.70 | 0.15 - 0.18 |
| 625×125-130 | 42 | 120 | 17 | 22-26 | 53 | 0.75 - 0.85 | 0.20 - 0.22 |
| 600×100-105 | 42 | 145 | 25 | 34-38 | 57 | 0.75 - 0.80 | 0.22 - 0.23 |
| 280×60-70 | 90 | 200 | 40 | 54-60 | 56 | 1.34 - 1.55 | 0.38 - 0.40 |
| 175×40-50 | 150 | 300 | 60 | 65-72 | 55 | 2.10 - 2.40 | 0.57 - 0.60 |
| 130×30-35 | 200 | 380 | 80 | 95-105 | 57 | 2.70 - 3.10 | 0.77 - 0.80 |
| 175×37 | --- | --- | 80 | 100-106 | 54 | 2.10 | 0.57 |
| 170×40 | --- | --- | 90 | 106-118 | 54 | 2.10 | 0.57 |
| 260×40 | --- | --- | 125 | 112-125 | 54 | 2.25 | 0.62 |
| 84×14 | --- | ---- | --- | 450-530 | 62 | 3.50 | 0.15 |
