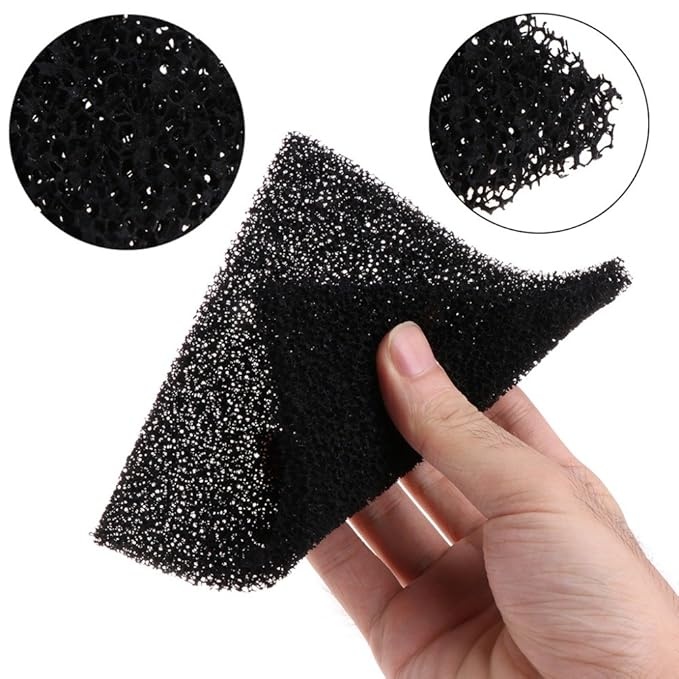

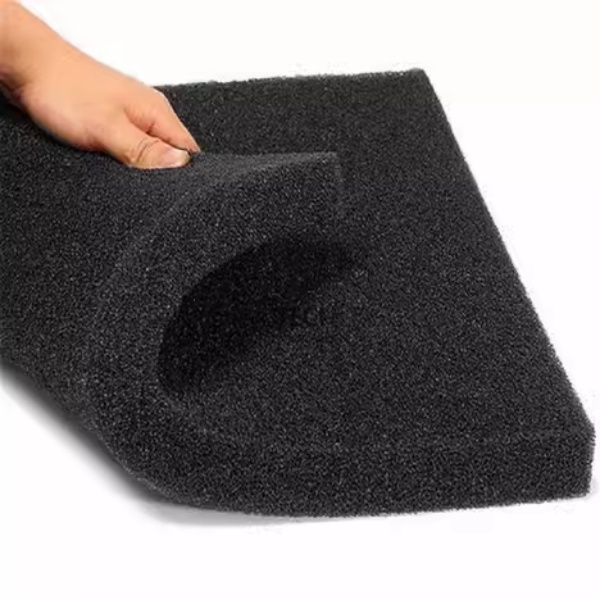

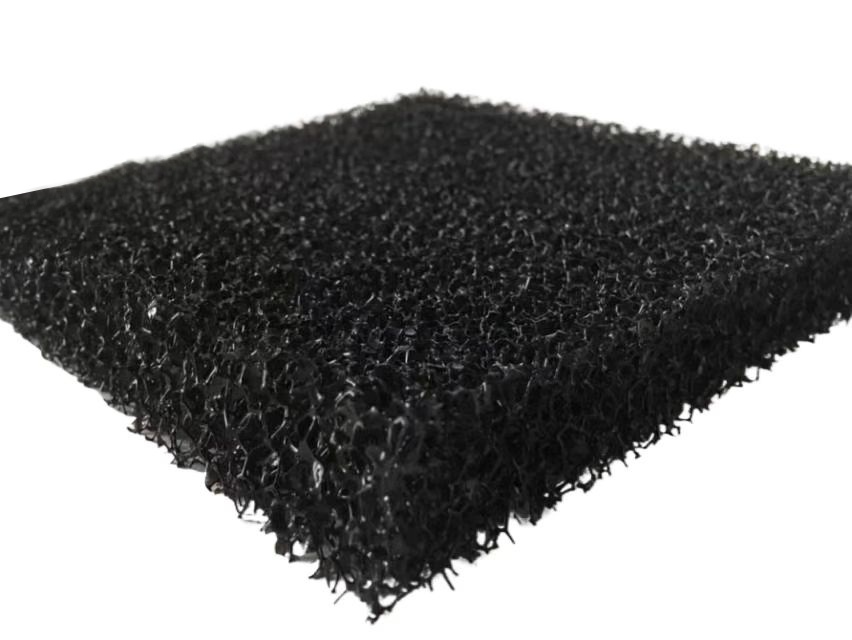

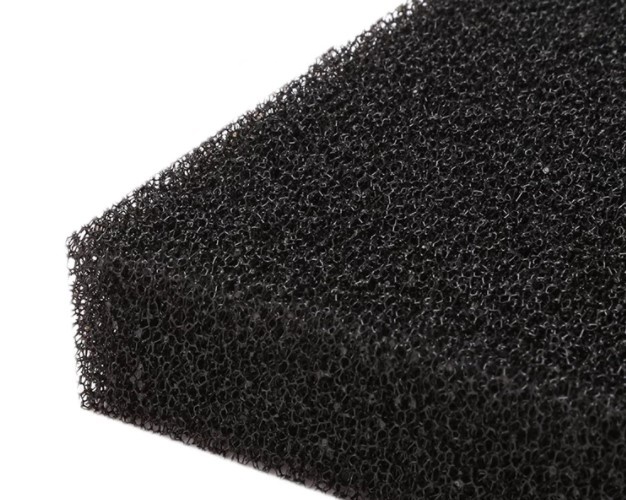

Daisy@foam-material.comPorous Ultramet Carbon Fiber Foam For Batteries
In addition to the conventional properties of carbon materials, carbon fiber foam also has the characteristics of low density, high strength, thermal shock resistance, easy processing, and good physical and chemical properties such as electrical conductivity, thermal conductivity, and wave absorption.
1. Low density, high strength
2. It can be made into high or low thermal conductivity materials
3. It has good thermal shock resistance and can resist the shock of temperature sudden change of
1250 ℃
4. High temperature and corrosion resistance
5. Pore size can be foamed according to customer's requirements
Technical indicators
Density | 0.2 ~ 1.0g/cm3 |
Porosity | 30 ~ 80% |
Aperture | 0.01-6mm |
Compressive strength | 8-12mpa |
Compression modulus | 300-620mpa |
Tensile strength | 2-5mpa |
Tensile modulus | 300 ~ 500MPa |
Thermal expansion coefficient | 5.0ppm / ℃ |
Thermal conductivity | 25 ~ 80W / m.k |
Resistivity | 1.0 × 10-2 ~ 10-5 Ω· M |
Maximum operating temperature | 600 ℃ (in air), 3000 ℃ (in inert gas) |
Dimensions
0.5mm*100mm*100mm | 0.6mm*100mm*100mm | 0.7mm*100mm*100mm |
0.8mm*100mm*100mm | 0.9mm*100mm*100mm | 1.0mm*100mm*100mm |
1.2mm*100mm*100mm | 1.5mm*100mm*100mm | 2.0mm*100mm*100mm |
2.5mm*100mm*100mm | 3.0mm*100mm*100mm | The size can be customized |
