Brass Wire Mesh Durable and Corrosion-Resistant Yellow Copper Screen

Introduction

Brass wire mesh also called brass cloth or brass screenCu, purple burnish metal, melting point of 1083.4 + / – 0.2 ℃,boiling point 2567 ℃,the density of 8.92 g/cm3, mohs hardness:Copper has good thermal conductivity and electrical conductivity,soluble in hot concentrated sulfuric acid and nitric acid, slightly soluble in hydrochloric acid, easily by alkali erosion.

According to the raw materials

Copper nets are divided into brass net (copper zinc alloy net), copper network (network) of pure copper, and bronze network (tin bronze mesh). According to the production process, Copper nets are then divided into copper wire woven wire mesh, copper stretch mesh, copper mesh,

copper wire, and gas-liquid filter

Specification

1. Detailed description of brass mesh

Name: Brass wire mesh (alias: shielded mesh).

Material: brass, 65 brass (about 65% copper, zinc containing 35%); 80 brass (about 80% copper, containing 20% zinc).

Specifications: 3 mesh / 吋 – 200 mesh / 吋.Weaving: plain weave, twill weave, “human” weaving and bamboo weaving.

Uses: Screen all kinds of particles, powder, porcelain clay, glass, porcelain printing, filtering liquid, gas.

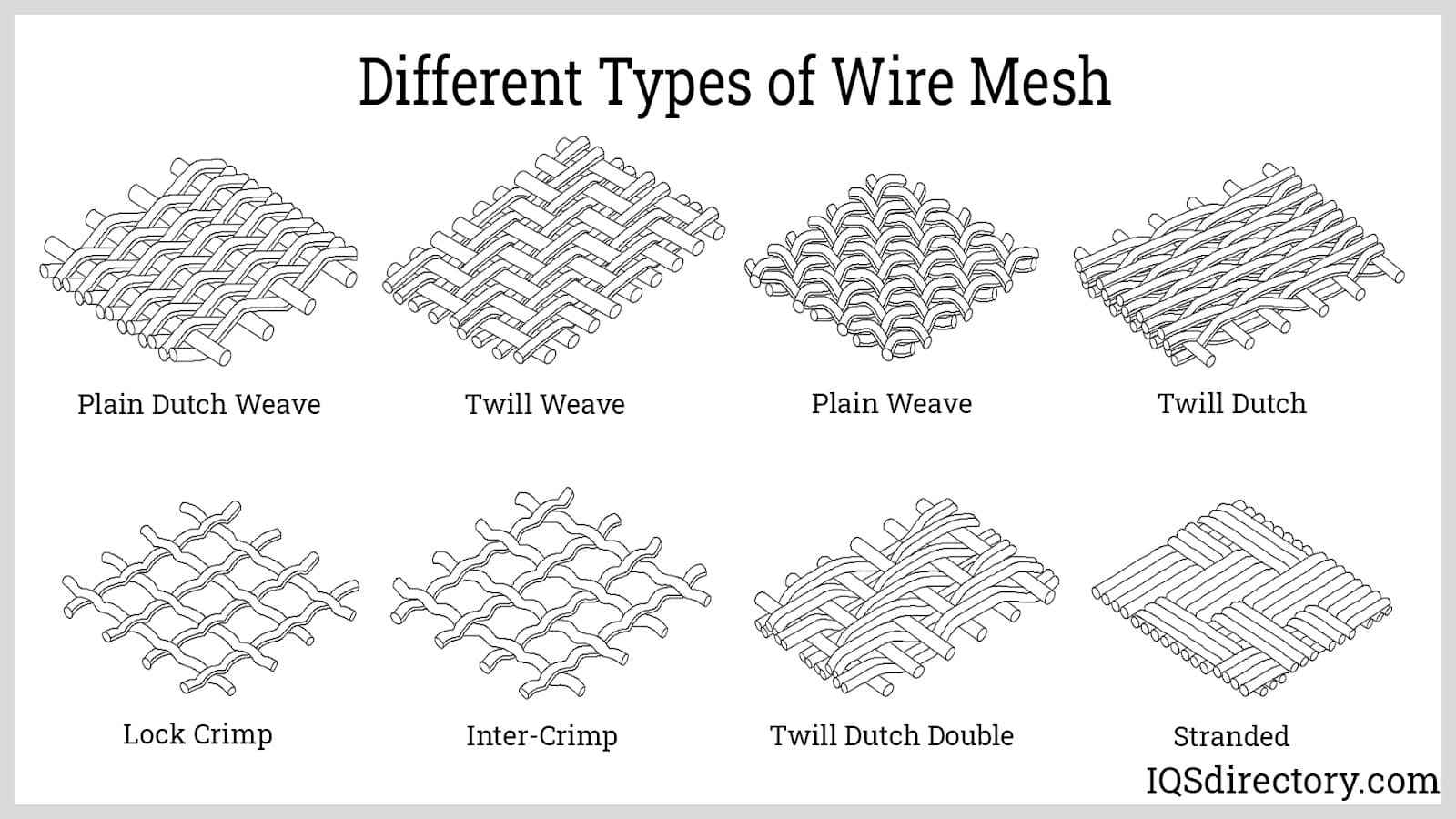

2. Weave Style:

Plain weave,twill weave,dutch plain weave，dutch twill weave.

3. Characteristics

Non-magnetic, wear resistance

Acid and alkali resistance, good ductility

Good conductivity, good heat transfer performance

4. Application:

Copper wire mesh frequently utilized in applications requiring shielding of electromagnetic interference (EMI).The reduction or exclusion of Electro-magnetic interference is dependent upon the signal amplitude and frequency in relation to the many combinations of mesh count, wire diameter and weaving materials available.

5.Production Range:

Wire diameter: 0.04-1mm

Mesh counts: 3-200 mesha

Common roll width:1m, 1.2m, 1.5m, 1.8m, 2m

Common roll length:30m, 50m, 100m
