Aluminum Wire Mesh for Insect Protection and Air Filtration

• Introduction

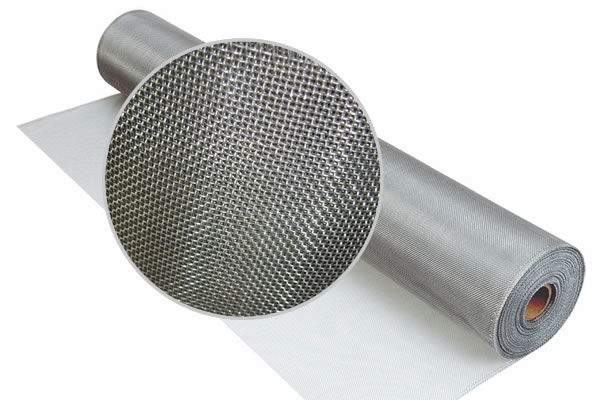

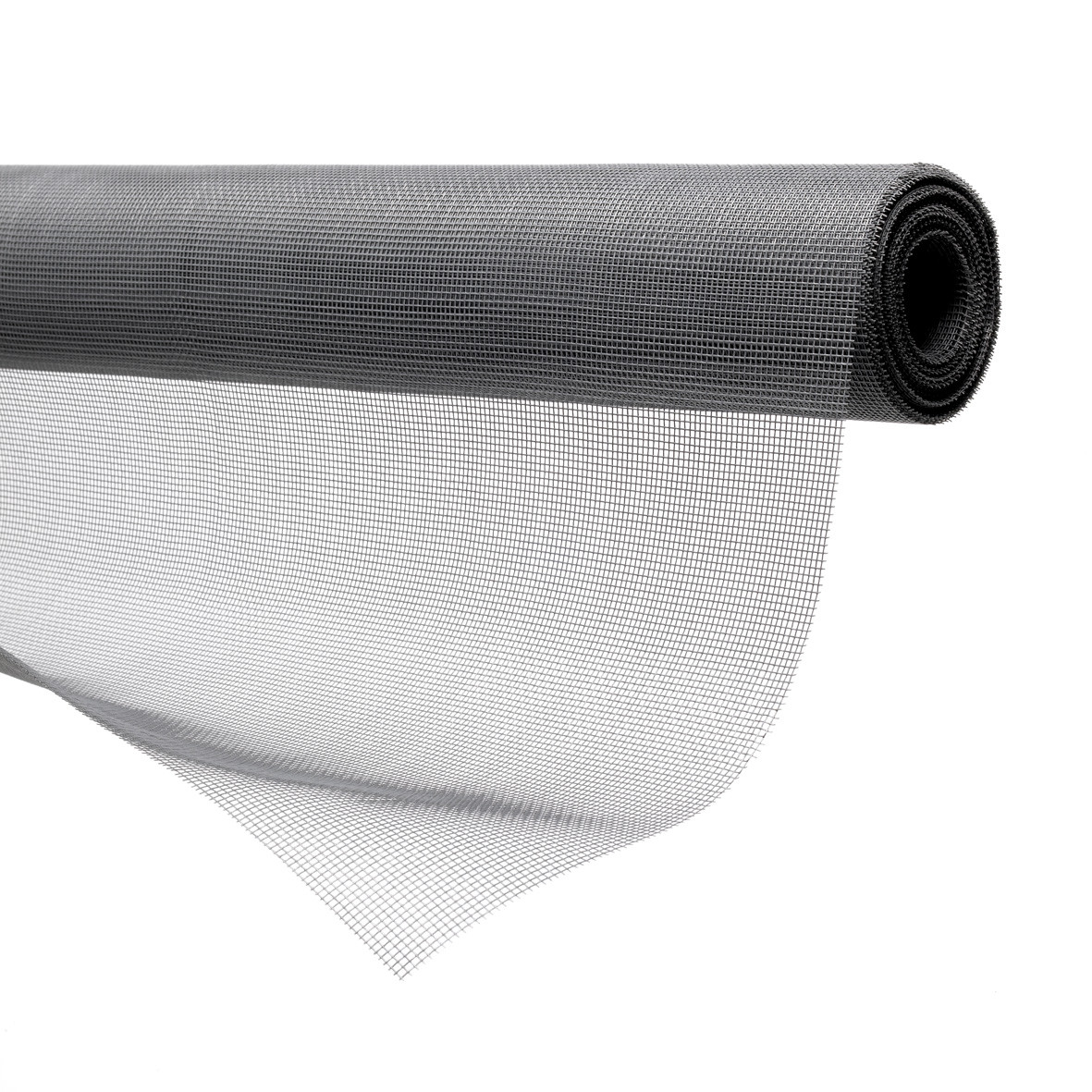

Woven from aluminum wire using a plain weave or twill weave, aluminum wire mesh comes in two variations: raw edge aluminum wire mesh and hemmed edge aluminum wire mesh, with square or rectangular mesh openings.

• Mesh Specifications

10 mesh, 12 mesh, 14 mesh, 12X14 mesh, 14X16 mesh, 16 mesh, 16X18 mesh, 18 mesh, 18X20 mesh, 20 mesh, 22 mesh, 24 mesh, 30 mesh, 40 mesh, etc.

• Width Ranges

20mm to 2000mm. Surface treatments are available, such as epoxy resin coating in black, green, light green, coffee, and other colors.

• Applications

Insect and mosquito protection, as well as air filtration.

• Parameters

Mesh Thickness	0.05-5mm
Mesh Width	10-2000mm
Mesh Hole	0.3*0.6mm	0.5*1mm	0.8*1.6mm	1*2mm
	1.25*2.5mm	1.5*3mm	2*3mm	2*4mm
	2.5*5mm	3*6mm	4*8mm	5*10mm
	6*12mm	8*16mm	10*20mm	50*100mm
Mesh	10	12	14	16
	18	20	28	30
	40	50	60	70
	80	90	100	customized

• To customize various metal meshes, please click the picture below for details：
