Titanium Fiber Felt for Electrolysis Cell Stacks

Introduction

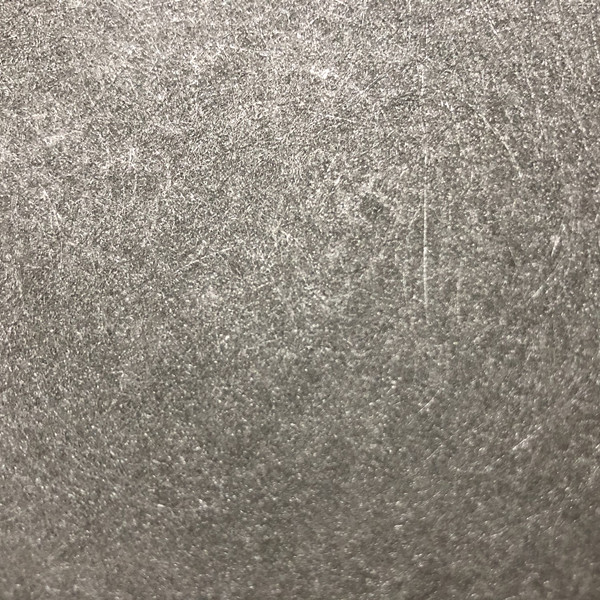

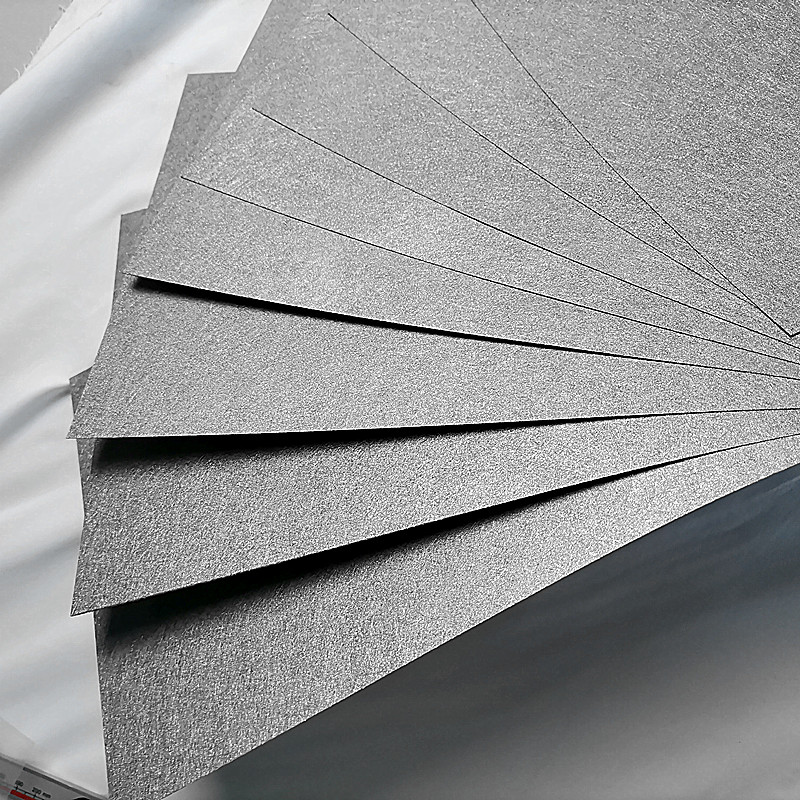

·High porosity sintered titanium fiber felt, a remarkable material renowned for its exceptional electrical conductivity. Designed for use in standard PEM electrolyzers, this titanium fiber felt serves as an indispensable flow field or diffuser material, particularly on the oxygen (anode) side.

·Unlike traditional carbon-based gas diffusion layers (GDLs), which are unsuitable for anode use due to rapid carbon oxidation to CO2 (in acidic media) or carbonate ions (in basic media) during the reaction, our titanium fiber felt stands out as an ideal alternative diffusion medium. Its superior conductivity not only enhances electrolysis performance but also ensures effective electrical contact between the anode catalyst layer and bipolar plate or current collector at the anode side.

Main features

Color	Light grey
Dimension	Customized as request
Thickness	0.2mm-2mm Often made thickness (0.25,0.4,0.6,0.8mm)
Porosity	60-70%

Chemical Composition Analysis

Test Methods

C:ASTM E1941-10(2016) Carbon and sulfur analyzer

H:GB/T 4698.15-2011

O,N:ASTM E1409-13 Oxygen and nitrogen analyzer

Others:HB7716.13-2002(ICP-OES)

Dimension (Thickness* Length*Width)

To customize various fiber felt, please click the picture below for details：
