20 40 60 80 100 200 400 Mesh Copper Wire Mesh - 0.4mm Brass Phosphor Bronze Copper Wire Cloth Mesh

Introduction

Copper wire mesh is a versatile material valued for its exceptional thermal and electrical conductivity. Its ductile and bendable nature makes it a popular choice for various electrical applications and in constructing Faraday cages, effectively shielding against radio frequency interference.

Specification

Brass wire mesh:

Material: brass wire (65 brass, 70 brass and 80 brass).

Brass mesh woven style: plain weave, twill weave and dutch weave.

Mesh :2-200mesh

Diameter: 0.05-2mm

Aperture: 0.074-10.90（mm）

Brass screen mesh roll width: 0.5-2m

Brass wire cloth roll Length: 10-100m or customized.

Brass wire mesh applications:

RFI/EMI/RF shielding, sieving diversified pellet, filtering liquid and gas, , insect screens, papermaking, powder, porcelain clay and glass, chinaware printing, architectural applications, sugar and marine applications.

Phosphor Bronze Wire Mesh:

Phosphor copper mesh cloth is made of the alloy of phosphor, tin and copper.

Phosphor bronze wire mesh size and type:

Material: Phosphor bronze wire (0.03%-0.35% phosphor, 5%-8% tin, other is copper)

Woven style: plain weave, twill weave or dutch weave.

Mesh :6-250mesh

Diameter:0.04-0.7mm

Roll Width: 0.5-1.5m

Roll Length: 10-100m

Phosphor bronze wire mesh applications:

Bronze works uniquely well in marine environments because saltwater doesn't easily destroy it. Phosphor bronze wire mesh applied to sieving and filtering granule, filtering liquid and gas, filter discs, craft papermaking, EMF/RFI shielding, faraday cage, window screen or door screen to prevent insect.

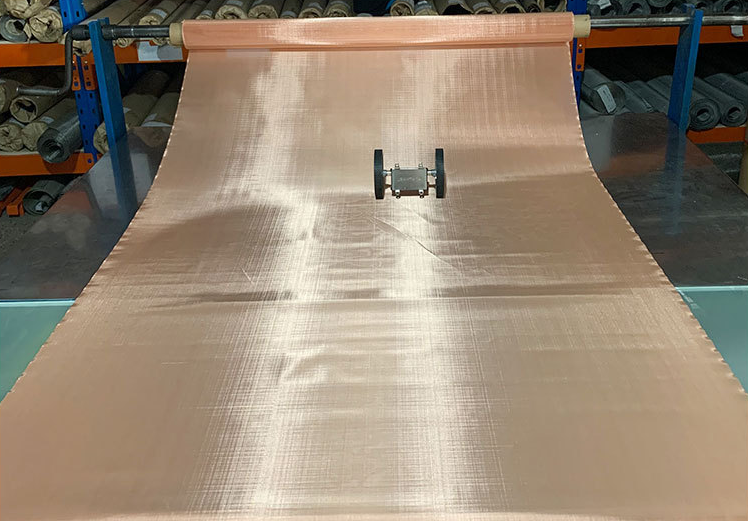

Red Copper Wire Mesh:

Red Copper Wire Mesh is woven with Pure copper wire 99.9%, Annealing to make the wire more flexible, Class A process.

Copper wire mesh size and type:

Material: Copper Wire (pure copper proportion 99.9%)

Woven style: plain weave, twill weave, dutch weave.

Mesh :2-200mesh

Diameter: 0.05-1.8mm

Roll Width: 0.5-3m or customized

Roll Length: 30m or customized

Red Copper Wire Mesh applications:

Copper mesh cloth have smooth surface, bright color, good electricity and heat conductivity, good toughness, can resistant to corrosion, abrasion, wear, rust, salt air, brine, acid and alkali. They can be used for shielding and earthing in telecommunication joints and others in industry, decorative mesh of house, filtration screen in mine, metallurgy, construction, pharmacy, printing, petroleum, rubber, paper making and food and other industries.

To customize various metal meshes, please click the picture below for details：
