A Guide to Different Types of Wire Mesh Weaves

Metal Mesh:

Weaving is everything when it comes to stainless and industrial wire cloth with woven wire mesh and wire mesh panels. The weave is what determines how the wire cloth can be used and in what capacity. With that in mind, here is a list of the types of weaves to choose from when purchasing wire cloth-related products.

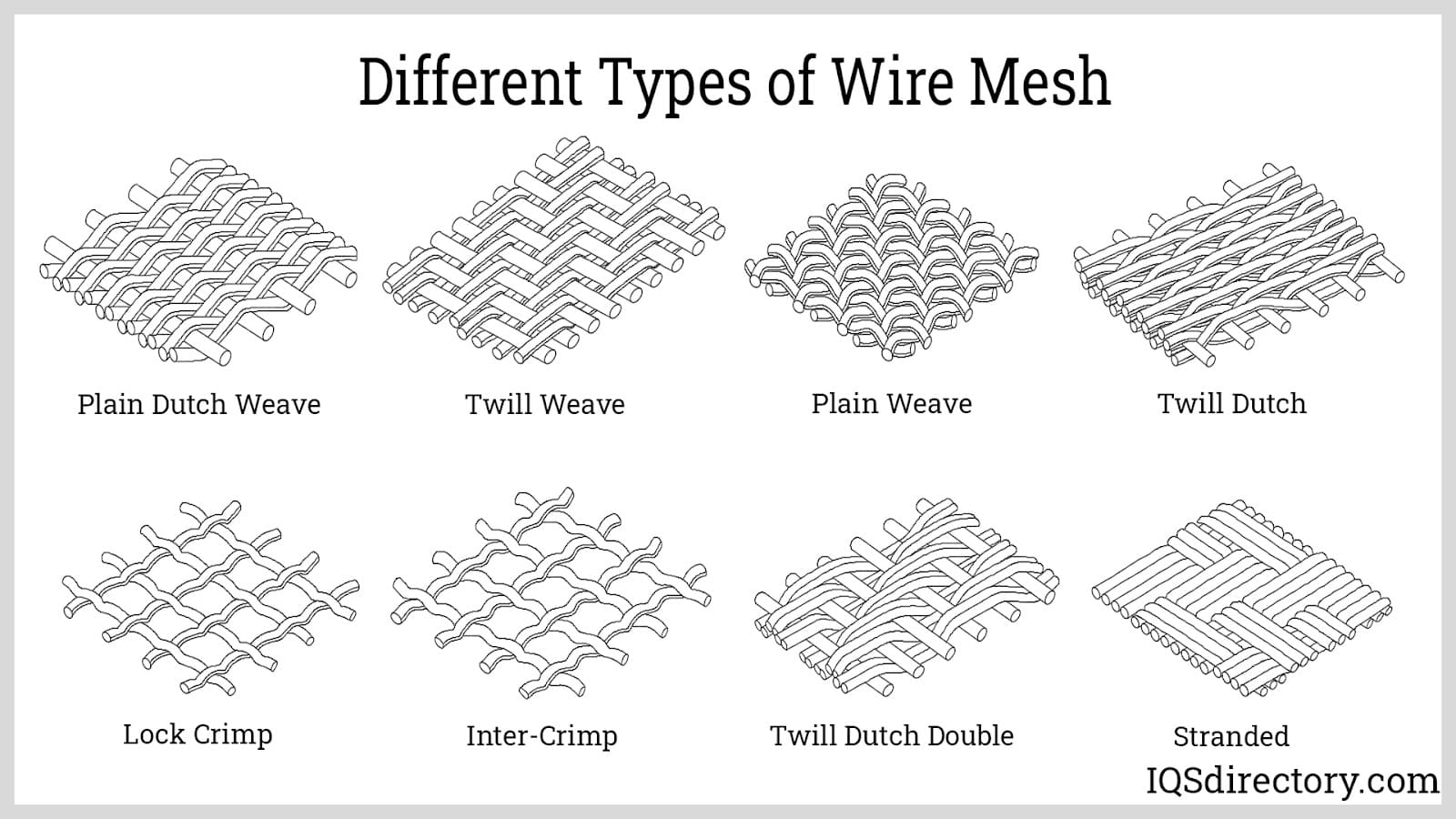

Normally we have four kinds of weaving in manufacturing:

Plain Weave, Twill Weave, Five Heddle Weave, Plain Dutch and Twill Dutch.

Plain Weave - The most commonly used weave. Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.

Twill Weave - Each weft wire passes alternately over two, and then under two successive warp wires and each warp wire passes alternately over two and under two successive weft wires.

Dutch Weave - Has fewer and usually heavier diameter warp wires than shute wires. Only because of the crimping of shute wires over and under warp wires is there any open area. In contrast to square weave, the flow path is tortuous. The warp wire is usually larger and runs the length of the cloth as woven. The shute wire is smaller and runs across the width of the cloth. Plain Dutch weaves can handle high flow rates with relatively low pressure drop.

Dutch Twill - It packs even more wires in a given area than Dutch plain woven wire cloth. Generally, Dutch Twill Woven Wire Cloth offers finer mesh counts and lower flow than other Dutch Woven Wire Cloth and can be made to filter particles as fine as 2 microns in diameter.

Dutch Plain - This kind of woven wire cloth has a coarser mesh and wire in the warp direction and a finer mesh and wire in the weft direction. Dutch Plain Woven Wire Cloth makes an ideal filter cloth with a very compact, firm mesh with great strength.

Five Heddle Weave – Wire cloth made of five-heddle weave has a smooth top surface and an open lower surface. It is ideal to withstand high mechanical strain and excellent filter performance.
